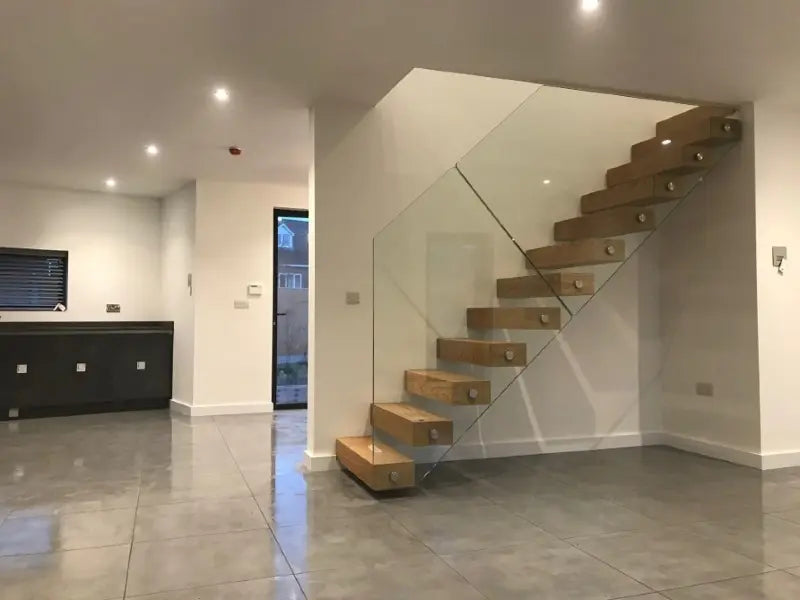

Replacing Spindles with Glass on Staircases: Pitch Angles, Clamps, and Tolerances

Spindles can look lovely on a staircase, especially if you live in a period property. But in a lot of modern homes, they do a really good job of blocking out the light. Our homes are getting smaller and therefore darker anyway; we don’t need anything else to make the space feel crowded and cluttered. But, of course, open staircases are dangerous. Which is why glass is becoming a more widely chosen option. It makes the space around the staircase feel brighter and less cluttered, not to mention more contemporary. But if you’re looking to replace stair spindles with glass, there’s a lot you need to consider.

Pitch Angles, Clamps, and Tolerances: The Essentials of Replacing Staircase Spindles with Glass

Start with the staircase pitch angle

The rake, or pitch, is the angle at which your staircase rises. You need this angle when designing glass panels so that the top and bottom edges follow the staircase accurately.

To calculate it, measure the rise and going of the staircase. The basic calculation is:

Pitch angle = arctan (rise ÷ going)

For example, if the staircase rises 2,400mm over a horizontal distance of 3,000mm:

Arctan (2,400 ÷ 3,000) = approximately 38.7°

This gives you the angle of the stair run. Remember that real staircases can vary, so take several measurements rather than assuming every tread is identical.

Template custom-shaped glass panels

Unlike a rectangular glass balustrade, staircase glass often needs angled or stepped edges. Accuracy here is important because toughened glass cannot simply be cut or altered once manufactured.

A practical approach is to create a full-size template using rigid cardboard, hardboard or a suitable sheet material. Place it where the glass will sit and mark the exact position of the treads, stringer, walls and handrail.

Check the template carefully before sending dimensions to the glass manufacturer. Allow for the required clearances and the dimensions of the glass balustrade clamps. Origin Architectural supplies clamps for different glass thicknesses, including Small D and Middle D options, with rubber gaskets designed to protect the glass.

For wider panels, remember that manufacturing tolerances can become more noticeable. Origin notes that large glass panels can vary by around 2–3mm across their width, so allowing realistic installation tolerance is essential.

Choosing and spacing staircase glass clamps

The size of the clamp should be matched to the glass thickness and fixing arrangement, rather than simply choosing the largest fitting available. Origin's range includes Small D clamps for 6–8mm glass and Small D options for 10mm glass, while Middle D clamps are available for 10mm, 12mm and 13.5mm glass.

When positioning clamps on a staircase, keep them evenly distributed and close enough to provide consistent support. However, there isn't a universal Small/Middle/Large spacing that guarantees safety for every staircase: panel size, glass specification, fixing substrate and system design all affect the required spacing.

Most importantly, don't rely on clamp friction alone to prevent movement. Origin recommends using the supplied safety pins as an additional measure against glass slipping. Where pins are used, the glass must be manufactured with the correct holes in the correct positions.

Think about tolerances before ordering

Measure twice, template once and confirm every fixing position before glass goes into production. Check the clamp deduction, glass thickness, hole positions, stair angle and fixing surface together.

The same principles apply to other frameless projects, whether you’re planning glass balustrades, a Juliet balcony, or an external installation where you’re going to have to consider other details, such as glass balustrade balcony drainage.

With accurate templates, correctly specified staircase glass clamps and appropriate safety fixings, replacing stair spindles with glass can deliver the clean, minimalist finish designers want without compromising the practical details that make the installation secure.

Looking for support to create your perfect glass staircase bannister? Get in touch with Origin Architectural.
