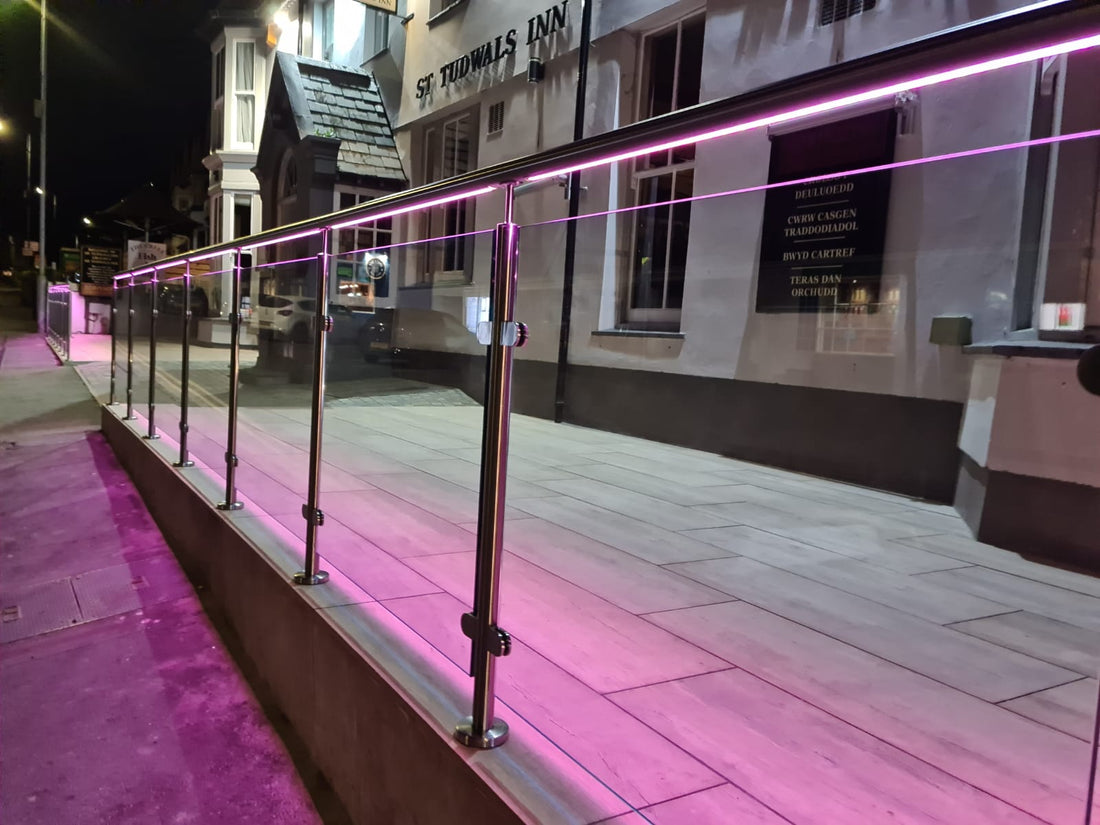

Integrating LED Lighting into Balustrade Base Channels and Handrails

LED lighting can transform a glass balustrade, making it into a beautiful feature. But it needs to be properly specified. You can’t just choose an LED strip and hope for the best. The glazing, aluminium profiles, drainage, wiring, and electrical protection all need to work together from the beginning. So, how can you get the best results?

Designing Lighting into Glass Balustrades

Start with the base profile

For an LED glass balustrade, the most important decision is often made before the glass is ordered: choosing a suitable base profile. Where possible, specify a profile with a dedicated LED cavity rather than attempting to retrofit lighting into a structural channel. The cavity needs enough space for the LED strip, diffuser, and heat management while remaining completely separate from the components responsible for securing the glass.

This is particularly important with balcony installations. A base channel needs controlled drainage, because rainwater can enter the profile. That’s why it’s best to incorporate drainage routes and weep holes rather than sealing water inside the channel. And LED components are better sitting in a protected, purpose-designed section of the profile wherever possible, with access for future maintenance.

Plan wiring before the glass arrives

The cleanest installations are designed around the wiring route rather than trying to hide cables afterwards. Agreeing the cable entry points, transformer location and access points before fabrication always provides better results. As long as the construction allows, low-voltage cabling can usually be concealed by other structural elements.

It’s also a good idea to avoid drilling or changing structural aluminium channels on site unless the system manufacturer specifically permits it. Fixing positions, glass tolerances and substrate conditions all influence the structural performance of a balustrade. Origin's base-fixed systems, for example, are engineered around specific fixing arrangements and tested glass configurations.

For electricians, leaving accessible junctions and serviceable connections is equally important. A visually perfect installation becomes problematic if an LED driver cannot be reached without removing glass.

Specify the right outdoor IP rating

Outdoor transformers, drivers, junction boxes, and LED components need to be selected according to their actual exposure.

IP ratings are defined under IEC 60529. IP65 provides dust-tight protection and protection against water jets, while IP67 also covers temporary immersion under defined test conditions. For an exposed balcony or terrace, the transformer should be housed in an appropriately rated enclosure and positioned away from areas where water can collect. If equipment could be exposed to standing water, an IP67 solution may be more appropriate.

Remember that the IP rating applies to the tested assembly. Cable glands, connectors, junction boxes and entry points must be compatible with the intended protection level.

Glass changes the character of the light

The glass specification also affects the finished lighting effect. Clear glass allows light to travel through crisply. But if you want a softer or more diffused effect, frosted or acid-etched glass can work really well. Low-iron glass is another option if clarity is your priority.

Consider drainage and maintenance together

On balconies, lighting cannot be considered separately from water management. A glass balustrade balcony drainage strategy should allow water to escape without directing it towards electrical components or cable entries.

The same principle applies to a Juliet balcony. Although there is no walkable platform, the system still needs carefully considered interfaces with the building envelope, particularly around doors, thresholds and external fixings.

For high-end glass balustrades, the best results come from treating lighting, glazing, structure and electrics as one coordinated specification. When the base channel, illuminated handrail channels, wiring routes and drainage are resolved at design stage, the finished installation can look almost effortless. Exactly what good architectural detailing should achieve.

Need support with glass balustrade specification and sourcing? Get in touch with Origin Architectural.
