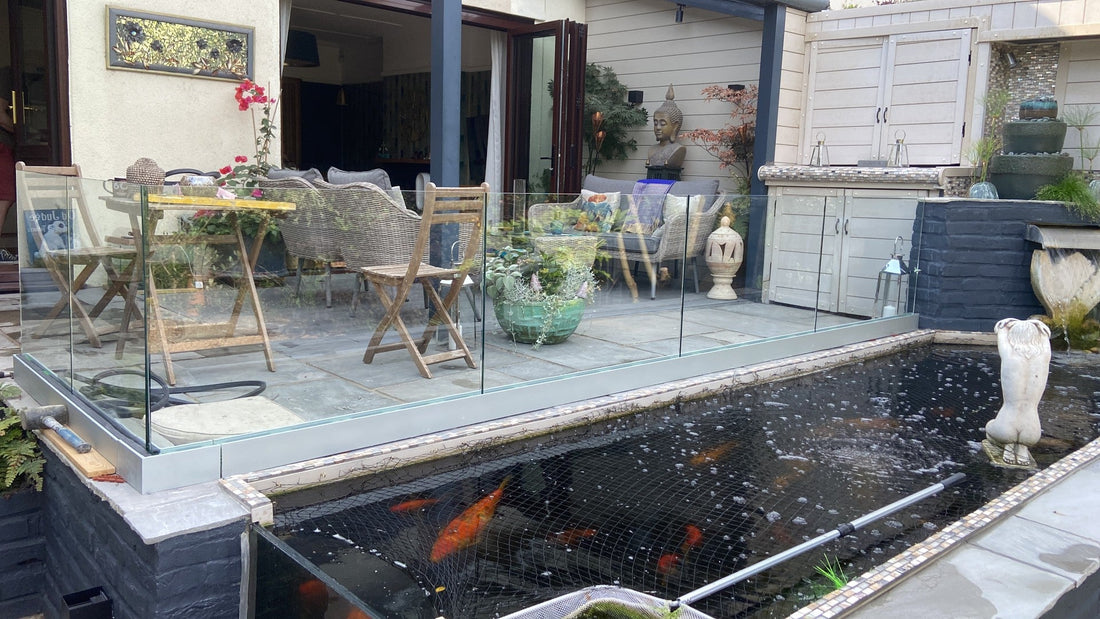

How to Install a Glass Viewing Window in a Raised Koi Pond

Building a raised koi pond is a fantastic garden project, and adding a pond viewing window takes it to an entirely different level. It turns a standard water feature into a living aquarium, allowing you to appreciate the true size, colour, and health of your fish from a side-on perspective.

But if you are a DIYer or a landscaper planning this build, there is probably one main thing worrying you: leaks. The thought of thousands of litres of water finding a weak spot around the glass is a common concern.

The good news is that installing a pond window is a straightforward process if you follow a strict guide. It comes down to getting the blockwork right, understanding overlaps, using the right chemicals, and never rushing the final steps.

A Step-by-Step Guide on Installing Pond Viewing Windows

1. The Golden Rule: The 75mm Overlap

Before you even order your pond glass, you need to understand how it's going to sit within your pond's wall. The glass does not just sit flush inside a hole; it presses against a recessed ledge (a rebate) built into the blockwork.

We strongly advise that you allow a minimum of 75mm clearance (overlap) on the bottom and both sides of the glass.

Why is this 75mm so crucial? It all comes down to water pressure and adhesion. When the pond is full, the water pushes the glass aggressively outward against the rebate. That 75mm strip provides the necessary surface area for the sealant to grip the glass and distribute the immense weight of the water evenly against the concrete. If you skimp on this overlap, you risk a blown seal and a catastrophic leak.

2. Preparing the Blockwork and Frame

Your blockwork needs to be structurally flawless. When building the pond walls (usually using dense concrete blocks laid flat), you will need to create the three-sided rebate for the glass to sit against (the two sides and the bottom).

Once the blocks are laid, the rebate needs to be rendered perfectly smooth. Any bumps, exposed aggregate, or uneven surfaces will create pressure points against the glass, which can lead to stress fractures or gaps in your sealant.

After rendering, the entire pond interior (including the 75mm rebate) needs waterproofing. For raised koi ponds, the standard is usually fibreglass. Ensure the fibreglassing wraps seamlessly into the rebate. You want the glass to bond directly to the waterproofed surface, creating a continuous, watertight shell.

3. Choosing the Right Sealants

You cannot cut corners here. Standard bathroom silicone will fail spectacularly under the pressure of a koi pond, and it will likely leach toxic chemicals into the water, killing your fish.

You need a high-modulus, fish-safe polyurethane or a specialist underwater silicone designed specifically for pond construction (brands like Gold Label or Adheseal are industry favourites). These sealants remain permanently flexible, accommodating the micro-movements of the glass as water temperatures fluctuate, while maintaining an iron-clad grip on both the glass and the fibreglass rebate.

4. Setting the Glass in Place

When you order pond window glass, you aren't just buying an off-the-shelf pane. It is incredibly heavy, laminated, and toughened. Handling it requires care, heavy-duty suction lifters, and usually a couple of strong pairs of hands.

To make this process safer and easier for builders, the glass supplied by Origin Architectural comes with polished edges and dubbed corners. Dubbed corners mean the sharp, 90-degree points have been slightly blunted or rounded off. This is a massive advantage on-site. Sharp corners are notorious for catching on blockwork during installation, which can chip the glass or ruin the waterproof membrane. Polished edges and dubbed corners ensure the glass slides safely into its rebate while also making it safer for the fish if the top edge is left exposed.

When applying the sealant, apply a generous, continuous bead (or several parallel beads) all the way around the 75mm rebate. Do not leave any gaps. Gently press the glass into the rebate. You don’t want to push it so hard that you squeeze all the sealant out—leave a solid bed of sealant between the glass and the wall for it to sit on. Use temporary timber bracing to hold the glass firmly against the rebate while it sets.

5. Curing Times and the Big Fill

This is where most DIYers get impatient and ruin their hard work. You’ve got the glass in. It looks great, and you want to put the hosepipe in. Don't.

Depending on the temperature, humidity, and the thickness of the sealant bed, the curing process can take anywhere from a few days to two weeks. Read the manufacturer’s instructions on your chosen sealant and then add a few days just to be safe.

When it is finally time to fill, do it in stages. Fill the pond until the water is a few inches up the glass, then stop and wait an hour. Check the perimeter carefully for any weeping. If it looks good, fill it halfway up the window, and check again. Gradual filling allows the glass to settle into the sealant under pressure without shocking the joint.

6. Don't Forget the Top of the Pond

Once your fish pond window is installed and the water is fully cycled, you’ll be ready to introduce your fish. But there is one final, critical step.

Koi are easily spooked and are notorious jumpers. The last thing you want after putting all this effort into building a beautiful raised pond is to find a prized koi on the patio the next morning. To protect your investment, installing koi pond jump guards is an absolute necessity. These sleek, unobtrusive guards sit around the perimeter of the pond, keeping your fish safely in the water without ruining the modern aesthetic of your build.

Ready to Start Building?

Installing a pond window doesn’t have to be a headache. By sticking to the 75mm overlap rule, preparing your blockwork properly, and using the right fish-safe materials, you can create a stunning, leak-proof feature for your garden.

If you are currently planning your build, Origin Architectural supplies premium, toughened, and laminated viewing windows designed specifically for the job.

Head over to our Pond Viewing Windows page to browse and buy our standard sizes, ranging from 1000mm to 2000mm widths, complete with safe dubbed corners and polished edges.

Got a question? Get in touch with a member of our team here.
