A Structural Guide to Juliet Balcony Installations

Juliet balconies have become increasingly popular for both residential and commercial properties. Largely because they provide uninterrupted views and increased natural light without projecting over the lower floors of the building. But for a Juliet balcony to be successful, you have to get the fundamental specifications right. Both for safety and regulatory compliance.

That means understanding the structural differences between stand-off glass adapters (point-fixed systems) and side-mounted profiles, while also taking into account thermal expansion, drilling tolerances, and gasket compression rates. All the things that influence the long-term performance of every Juliet balcony installation.

Key takeaways

• A Juliet balcony provides fall protection without creating a walkable platform.
• Point-fixed stand-off adapters concentrate loads around drilled fixing holes, producing higher local tensile stresses.
• Side-mounted profiles distribute shear forces continuously along the base edge, reducing stress concentrations.
• Thermal expansion differences between glass and aluminium must be accommodated to prevent restraint-induced stresses.
• Accurate drilling tolerances are essential for point-fixed systems because holes cannot be modified after toughening.
• Correct gasket compression helps distribute loads, accommodate movement, and protect glass edges.
• Continuous load paths generally offer greater tolerance to installation variations.
• Early coordination between specifiers, engineers, fabricators, and installers improves installation quality and long-term structural reliability.



A Comprehensive Guide to Juliet Balcony Installation



What is a Juliet balcony?

If you’re not entirely certain what constitutes a Juliet balcony, it’s essentially a protective balustrade installed directly outside full-height doors or large windows. But, unlike other balconies, it does not have a surface to step out upon. So, it allows you to have uninterrupted views and more ventilation, but it doesn’t let you leave the room.

While Juliet balconies come in a variety of styles, most are now manufactured using toughened laminated glass combined with stainless steel or aluminium fixing systems. This delivers a clean, seamless appearance while complying with building regulations.

Understanding structural loading

It’s easy to overlook the issue of loading on a structure not designed to be walked on. But with Juliet balconies, there are horizontal line loads to consider. In other words, the weight of people leaning against the glass as they look out of the window. These loads are transferred through the fixing system into the building structure. And the efficiency of load transfer depends largely on the support method used.

The two most common systems are the following:

• Stand-off glass adapters (point-fixed)
• Side-mounted aluminium base profiles

While they do the same job, they behave quite differently under structural loading.

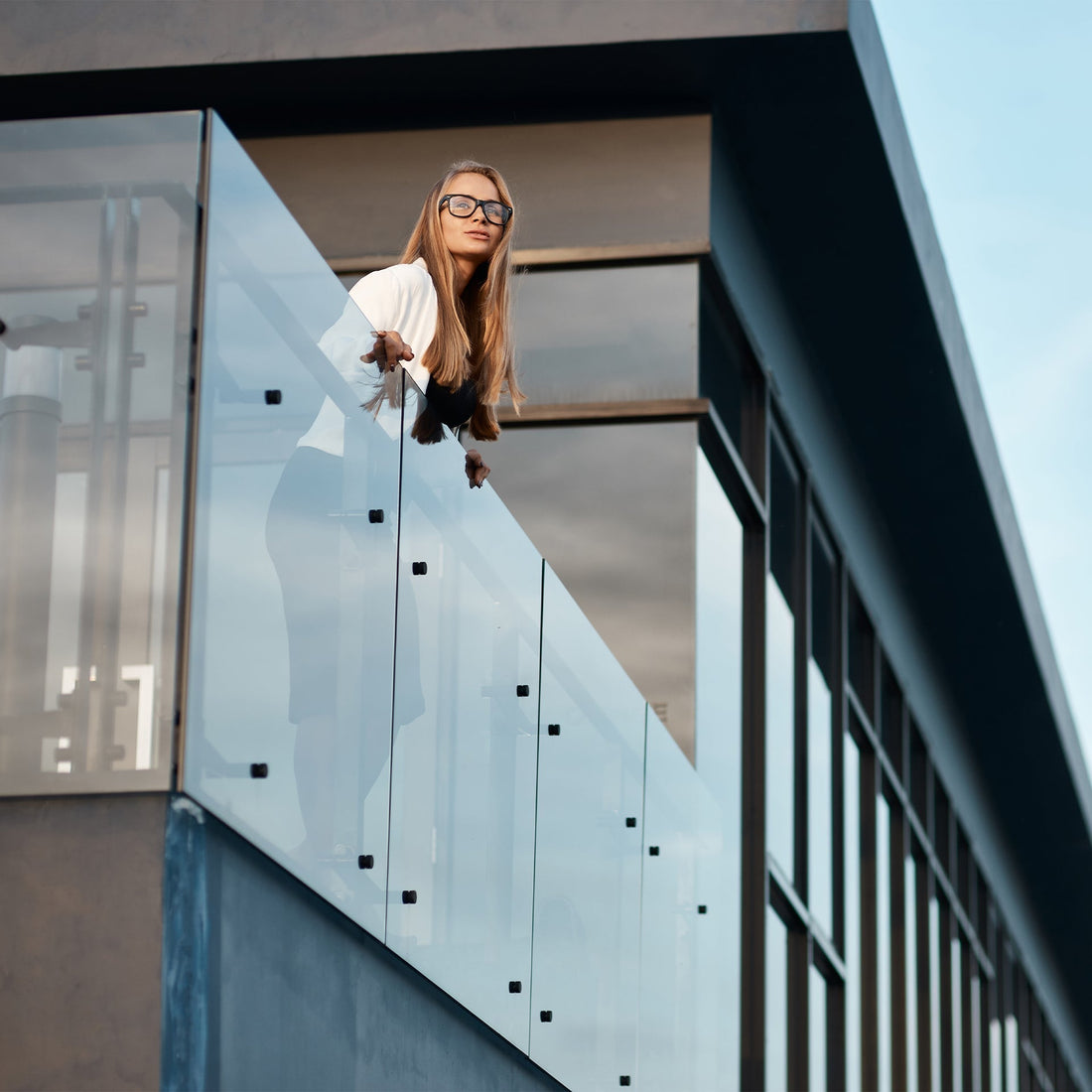

Stand-off glass adapters: Point-fixed systems



Stand-off adapters secure the glass using precision-drilled holes through the glass panel. Stainless steel fixings clamp the glass while projecting it slightly away from the building façade. Unlike continuous support systems, point-fixed arrangements concentrate structural loads at each individual fixing point, creating localised tensile and compressive stresses within the glass surrounding every drilled hole.

When lateral loads are applied, bending forces generate:

• High tension around fixing holes
• Compression on the opposing face of the glass
• Localised stress concentrations
• Greater reliance on accurate hole positioning

So, point-fixed systems require extremely accurate manufacturing and installation tolerances because any deviation in drilling position can introduce unwanted stress before the glass is even loaded.

As loads are transferred through relatively small contact points, engineers often specify thicker laminated glass than would be required for continuously supported systems.

Side-mounted profiles

Side-mounted aluminium profiles support the bottom edge of the glass continuously along its entire width. So, instead of concentrating loads at discrete fixing locations, structural forces are distributed evenly through the profile, which alters the way the glass behaves. The continuous support reduces peak stress concentrations and allows bending forces to spread across the full panel.

Advantages include:

• More uniform load distribution
• Lower peak tensile stress
• Reduced stress concentration
• Greater tolerance to installation variation
• Improved resistance to dynamic loading

For larger spans or heavier laminated glass, this continuous load path often provides the best structural efficiency.

Sheer force and tension differences

One of the most important engineering distinctions between both systems lies in the way shear forces and tensile stresses develop.

With stand-off adapters:

• Shear loads transfer through each individual fixing.
• Tensile stresses become concentrated around drilled holes.
• Glass experiences localised stress peaks.
• Small inaccuracies can significantly increase stress.

With side-mounted profiles:

• Shear loads spread along the full base edge.
• Tensile forces and distributed restraint generally result in lower maximum stresses within the glass, making a profile when correctly engineered but demand considerably tighter across a larger area.
• Stress concentrations are substantially reduced.
• Overall structural redundancy increases.

Continuous edge restraint generally results in lower maximum stresses within the glass, making profile systems particularly attractive where larger glazing panels or increased design loads are anticipated.

Thermal expansion considerations



Glass and metal expand at different rates when exposed to temperature changes, which adds a new consideration to specifying a glass Juliet balcony. Although glass has relatively low thermal expansion, aluminium expands almost twice as much under equivalent temperature increases, which can stress the glazing system over time if precautions aren’t taken.

Side-mounted profiles accommodate thermal movement through carefully designed gasket systems that allow controlled expansion while maintaining structural restraint.

Point-fixed systems accommodate movement differently. Stand-off adapters rely on carefully sized holes combined with sleeves, washers, and isolating components that prevent rigid metal-to-glass contact. If not enough allowance is made for movement, thermal expansion can generate restraint forces that increase edge stresses around drilled holes.

Drilling tolerances for point-fixed glass



Precision drilling is essential for point-fixed Juliet balcony installations. Glass holes are manufactured before the toughening process, meaning they cannot be altered on site.

Typical considerations include the following:

• Accurate hole positioning
• Edge distances
• Hole diameter consistency
• Alignment between fixing centres
• Manufacturing tolerances

If holes are incorrectly positioned, installers may encounter the following:

• Excessive installation stress
• Misalignment with structural supports
• Uneven loading
• Increased fracture risk

So, maintaining strict fabrication tolerances is essential for structural integrity.

Gasket compression rates

Gaskets perform a far greater role than simply preventing metal-to-glass contact.

They provide:

• Load distribution
• Vibration isolation
• Thermal movement accommodation
• Water management
• Protection against stress concentrations

Correct gasket compression is particularly important within side-mounted profile systems, as insufficient compression can allow glass movement under load. But excessive compression may generate unnecessary edge pressure that increases stress within the laminated panel.

Installation considerations



Structural calculations alone do not guarantee a successful installation.

• Installers should also consider:
• Structural substrate quality
• Fixing embedment depth
• Concrete or masonry strength
• Steel support positioning
• Glass handling procedures
• Levelling tolerances
• Sealant compatibility
• Drainage and moisture management

Even minor deviations during installation can influence long-term structural performance. For this reason, collaboration between manufacturers, structural engineers, fabricators, and installers remains essential throughout the project.

Choosing the right system

Neither fixing method is universally superior. Instead, the appropriate choice depends on project-specific requirements.

Stand-off adapters are often preferred where minimal visual obstruction and contemporary architectural detailing are priorities.

Side-mounted profiles are commonly selected where structural efficiency, simplified installation, and continuous load transfer are required.

Specifiers should evaluate:

• Structural loading requirements
• Glass dimensions
• Building substrate
• Installation tolerances
• Maintenance expectations
• Architectural appearance
• Budget considerations

Selecting the correct fixing system early in the design stage helps minimise installation challenges while improving long-term performance.

Successful Juliet balconies rely on far more than attractive glazing. Their long-term structural performance depends on careful consideration of load paths, fixing methods, thermal movement, manufacturing precision, and installation quality.
