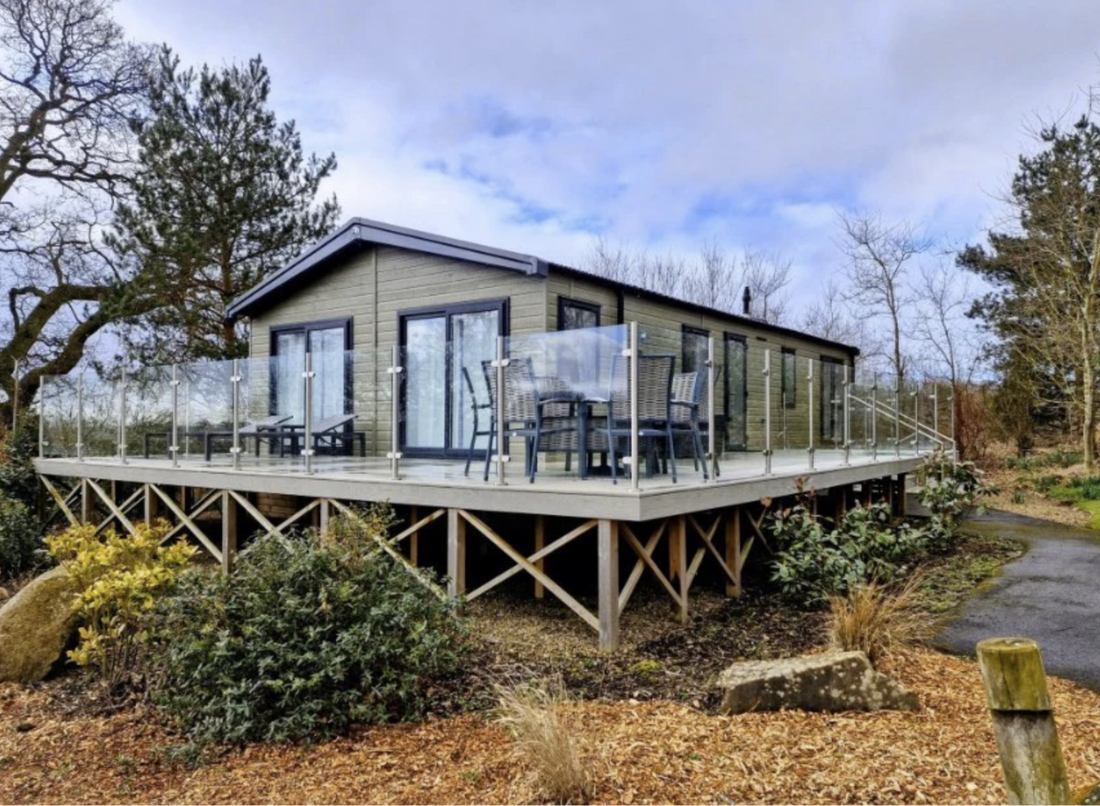

Fixings for Timber, Steel, and Concrete: The Ultimate Balustrade Anchoring Guide
A glass balustrade is only as strong as the substrate it’s fixed to. While glass specifications, loading calculations, and system design receive most of the attention, poor fixing methods are actually the number one cause of balustrade failure. So, you want to add a glass balustrade to a building, understanding the correct fixing method for different substrates is essential.
Balustrade Anchoring Guide
Why substrate fixing matters
Modern balustrade systems are engineered to withstand significant loads; regulatory compliance demands it. But even the most robust system can become compromised if the fixing point cannot transfer those loads into the structure beneath. So, before installation begins, it’s important to identify exactly what material you're fixing into. Concrete, steel, timber, and masonry all behave differently under load and require specific fixing solutions.
Fixing a glass balustrade to concrete
Concrete is generally considered the most reliable substrate for glass balustrade installation. When correctly specified, it provides excellent load-bearing capacity and long-term stability.
For solid concrete slabs, heavy-duty mechanical anchors or chemical/resin anchors are typically used, depending on the application and edge distances available. Chemical anchors are particularly useful where high pull-out resistance is required. They work by bonding a threaded stud directly into the concrete, creating a secure fixing point that distributes loads effectively throughout the substrate.
When installing base-mounted glass balustrade systems onto concrete, you must ensure minimum embedment depths are met. And avoid fixing too close to slab edges, where concrete breakout can occur under load.
Using resin anchors in hollow brick and masonry
Hollow brick and perforated blockwork are more challenging to work with because traditional expansion anchors can crack the surrounding material or fail to properly grip. That’s where combining resin-based fixing systems with mesh sleeves can be useful. The mesh sleeve contains the resin while allowing it to flow into the cavities of the brick. Once cured, the resin forms a mechanical bond that spreads the load across a larger area of the substrate. This is the most popular method for anchoring balustrades to concrete alternatives, particularly where structural concrete is unavailable.
Do note, though, not all hollow masonry is suitable for supporting balustrade loads. So always seek structural verification before installation.
Fixing to structural steel
Steel structures can provide exceptionally strong fixing points when properly detailed. For most structural steel glass balustrade installations, M12 bolts are widely specified due to their combination of strength, availability, and compatibility. However, the exact bolt grade and fixing arrangement will depend on the structural design, so you should always check that the steel is capable of carrying the imposed loads. Fixing into thin steel without adequate reinforcement can lead to deformation long before the fixing fails.
Where possible, bolted connections should be installed through pre-engineered fixing points rather than relying on site-drilled locations that may compromise the integrity of the steelwork.
The limitations of fixing into timber joists
Timber decking seems made for glass balustrades, but it’s also structurally challenging. And the most common mistake people make is fixing directly into timber deck boards or small timber joists. While the fixing may feel secure to start with, repeated loading can cause movement, loosening, and structural deterioration.
The reality is that many domestic timber joists were never designed to accommodate the lateral loads imposed by a balustrade. So, where timber is the primary substrate, additional structural support is usually needed. Which means installing reinforced noggins, doubling up joists, or introducing dedicated steel support members beneath the deck.
Before fixing a glass balustrade to timber, always check the condition, size, span, and load-bearing capacity of the framework.
Getting the fixing right first time
The fixing strategy should always be a priority when you’re considering installing a glass balustrade, regardless of the substrate you’re working with.
- Concrete generally provides the most straightforward installation route.
- Hollow brick typically requires resin anchors and mesh sleeves.
- Structural steel often relies on M12 bolted connections.
- Timber requires careful assessment to ensure the supporting structure can safely carry the load.
By matching the fixing method to the substrate, you can ensure that your balustrade performs exactly as intended for years to come.
