We stock all standard pond glass sizes and can supply custom panels to fit any project.
For bespoke orders and specifications, contact us today via phone, email, or our online form.
Up to 400mm deep, 1600mm wide.
Up to 600mm deep, 2000mm wide.
Up to 1000mm deep, 2000mm wide.
Up to 1000mm deep, 3000mm wide.

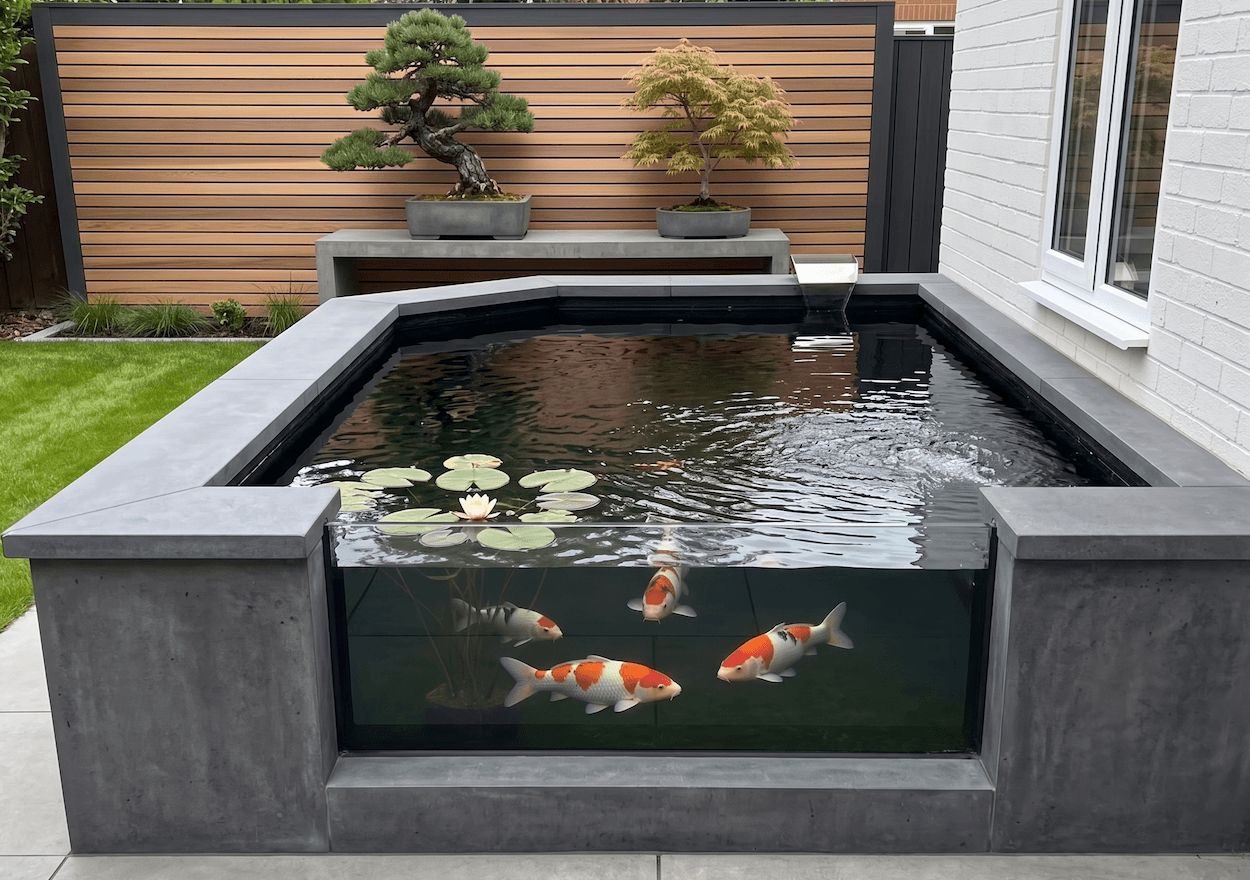

Upgrade your pond with the UK’s finest viewing windows from Origin Architectural. We offer premium glass panels in standard thicknesses (21.5mm, 25.5mm, 33mm, and 39mm) and can easily supply bespoke sizes to suit any custom build.
Our Premium Glass Specifications:
Ready to transform your pond into a stunning focal point? Contact us today!
When designing a pond viewing window, safety and longevity are paramount. At Origin Architectural, our high-performance glass is engineered to meet the strictest safety standards, offering guaranteed strength and uncompromising quality for any installation.
Pond viewing windows require exceptional strength and are manufactured using toughened laminated glass. This advanced construction combines multiple layers of toughened glass, securely bonded together with a structural interlayer. You can find similar heavy-duty options within our custom glass panels range.
This specialized manufacturing process delivers:
Unlike standard single toughened panels, toughened laminated glass retains its structural integrity even if one layer becomes damaged. This failsafe characteristic makes it the only suitable choice for structural pond walls and raised installations where safety is paramount.
For projects requiring additional reassurance, we can work in conjunction with a structural glass engineer to confirm the exact specifications for your intended depth and span. Depending on the scale of your pond, options such as 21.5mm, 25.5mm, or 33mm toughened laminated glass may be recommended.
There is no universal thickness for pond glass. The correct specification is highly bespoke and depends on several key factors:
Water pressure increases significantly with depth. A deeper body of water or a large koi pond requires much thicker glass to resist bowing and maintain a perfectly flat, secure finish. As a general guide, shallow decorative features may utilize thinner laminated panels, while deep, raised ponds require heavy-duty structural units (such as 33mm or 39mm panels) for safety and performance.
Every pond window supplied by Origin Architectural is manufactured to exact specifications. We carefully assess your required depth and span before confirming the safest and most effective glass thickness.
No two water features are identical. Whether you are building a fibreglass frame pond, a brick-built raised wall, or integrating a viewing window into a cement structure with intricate liner detailing, your glass must be cut precisely and finished flawlessly.
Within our custom glass panel range, we supply bespoke units featuring:
Each pond viewing window is produced to perfectly match your frame and wall design, making them ideal for fibreglass, brick, block, and liner-based systems.
A raised pond wall filled with water places a relentless, continuous load against your viewing window. Over time, environmental durability matters just as much as initial structural strength.
To ensure absolute reliability, our pond window glass is:
In harsh winter conditions, temperature fluctuations can heavily impact structural materials. Toughened laminated glass provides drastically enhanced resilience compared to single toughened panels.
Pro Tip: For additional protection in raised installations, consider incorporating pond jump guards to keep your koi and other fish safely contained.
While correct silicone bonding and frame support are critical during installation, Origin Architectural focuses solely on supplying the perfectly specified, highest-quality glass panel for your build.
We manufacture pond windows to your exact provided specifications. To rapidly prepare your quote and order, we simply require:
All panels are securely packaged with heavy-duty edge protection to ensure safe transit. We provide fast, reliable delivery across the UK, keeping your landscaping project on schedule. On delivery day, your panel will arrive ready for immediate installation by your chosen contractor or builder.
At Origin Architectural, we want to ensure your high-quality glass results in a professional, watertight installation. Below are some of the most effective, industry-standard methods for fitting your pond viewing window into both brickwork and fibreglass frames.
Installing glass directly into a brick or sleeper structure is a cost-effective and highly reliable approach. The core concept relies on water pressure naturally holding the glass securely against a rebated frame once the pond is filled.
1. Preparation
Cut your brick or sleeper blocks before laying them. Remember to leave an extra 5mm in height to accommodate the spacers that will support the glass from underneath.
2. Building the Rebate
Your brickwork should form an interior recess (rebate) approximately 6-10mm larger than the exact size of your pond glass. This provides a crucial 3-5mm gap around all edges. This gap will eventually be filled with aquatic silicone to form a watertight seal. Ensure all mortar or cement is fully cured before attempting to fit the glass.
3. Fitting the Glass
Use packers underneath the glass to ensure it sits perfectly level. Clamp the panel temporarily into place, then fill the 3-5mm perimeter gap entirely with high-quality aquatic silicone sealant. Once the silicone has cured, apply a smooth render or plaster across the exterior brickwork for a seamless finish.
4. Preparing and Sealing the Liner
If using a liner, mask off around 40mm from the edges of the glass on all interior sides. The liner must sit flat against the glass and brickwork without creases, as folds can allow water pressure to dislodge the seal. Mark the liner against your masking tape and cut it precisely. Apply a generous bead of silicone around the glass edge, carefully press the liner into the sealant, and smooth it with your finger. Remove the masking tape before the silicone cures for a neat, straight line.
An alternative professional method involves installing a pre-made fibreglass frame into a prepared opening in your brickwork.
Render around the frame to achieve a smooth, flush finish, and secure it firmly using structural screws. For a highly polished appearance, insulation boards (such as 1-inch Kingspan) can be added. The pond's internal fibreglass lining is then applied directly over the frame, and the glass panel is heavily siliconed into the frame's recess for a secure, watertight fit.
The installation methods outlined above are standard practices recommended by landscaping professionals. For the best and safest results, we strongly advise consulting with a qualified pond installer or structural builder. Origin Architectural accepts no liability for damages, leaks, or structural issues resulting from DIY installations.
Ready to transform your standard pond into a stunning outdoor centerpiece? Discover the ultimate pond glass range at Origin Architectural. From heavy-duty viewing panels to protective jump guards, our products are engineered to beautifully enhance your outdoor space.
Contact us today to discuss your bespoke requirements and let us supply the perfect glass for your next project!
