Frameless Glass Balustrades

Frameless Glass Balustrades

WHY CHOOSE ORIGIN ARCHITECTURAL FOR YOUR

FRAMELESS GLASS BALUSTRADES

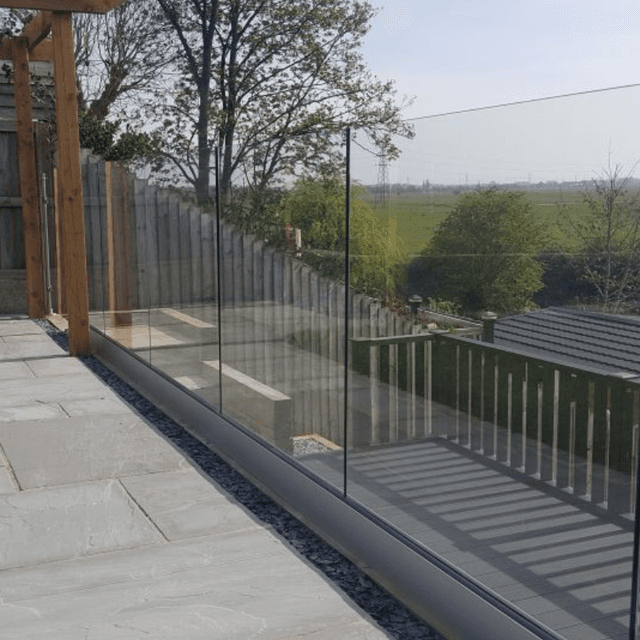

Frameless glass balustrades offer the perfect solution when you want to provide a stylish design with uninterrupted views.

This versatile system can be used internally or externally and can be used in a variety of applications. The contemporary style of this balustrade system allows it to be used in both domestic and commercial settings and offers a great railing alternative for balconies, patios, garden decking, and various retail or leisure settings. When your design flair demands a safety barrier, that allows seamless views with plenty of light, frameless glass balustrades are the ideal solution. Often used outdoor for swimming pool glass fencing, decking balustrades as well as for staircase balustrades too.

Here at Origin Architectural, we have a number of different frameless glass balustrade systems. They are all fully certified and tested to any number of load bearings. Be it a Juliet balcony, a decking area or a public space we can advise you on which glass channel system is most appropriate for you.

Design your own balustrade quickly and easily on our site for a free quote!

About Our Channel Systems

  •

    Flex Fit

    Origin Flex Fit is a well established product. Its slender and attractive design make it popular for a number of applications. It is one of the most competitively priced channel systems on the market.

  • Flex Fit Pro

    Origin Flex Fit Pro is a well established product. Its slender and attractive design make it popular for a number of commercial and domestic applications. It is one of the most competitively priced commercial channel systems on the market with the added cost benefit of reduced fixing holes compared to other commercial channel systems.

  •

    Easy Fit

    Origin Easy Fit is a fully adjustable system for balustrades and partitions. It is a market leading product for use in both residential and commercial applications. It can be specified for glass thicknesses from 12.5mm to 21.5mm

  •

    SABCO

    Origin Sabco is a frameless glass balustrade system that is new to the market. It has a sleek finish which can be used in all applications. The advantages of Origin Sabco include removable covers to avoid the channel being damaged either during installation or in transit.

  •

    Strong Fit

    Origin Strong-Fit is able to absorb linear side forces up to 3kN in prescribed conditions. It is a glass railing system that can cope with heavier loads for applications such as shopping centres, stadiums or museums.

  •

    Test Data

    All of Origin’s channel systems are engineered to meet the strictest building regulations. The test results for each system are detailed as follows...

Why Choose Origin?

We select our products on the basis that they are both aesthetically pleasing as well as being quick, easy and cost effective to install so you get the best finish for the best price. You can choose from different frameless glass balustrades and glass railing systems that vary in surface finishes, glass thicknesses and purpose as well as picking individual balustrade components for bespoke applications. Our team are all highly experienced so they are here to help you whenever and wherever you need it. From providing over the phone advice to help you with your installation, to making site visits to fully understand your project in situ so we can give you the best advice. Contact us today to discuss your requirements

We use cookies to improve your experience on our website. By browsing this website, you agree to our use of cookies.
Accept

PLEASE NOTE: Measurement is taken from outside of profile to outside of profile.

Skyforce Top Mount according Test BS 6180 (0,74 kN/m)Tested to Aluminium
GLASS WIDTH UP TO GLASS THICKNESS (tempered glass) GLASS HEIGHT
1000mm 12.76mm 300mm – 1100mm
1700mm 16.76mm 300mm – 1100mm
3000mm 21.52mm 500mm – 1100mm
(According test BS 6180) Tested on the basis that the minimum thickness of the aluminium frame is 1.4mm.   FIXING TO PVC FRAME SkyForce Top Mount Tested to Plastic According to the German Standard ETB Directive
GLASS WIDTH UP TO GLASS THICKNESS (tempered glass) GLASS HEIGHT
1600mm 12.76mm 700mm-1200mm
2100mm 16.76mm (17.52) 900mm-1200mm
2600mm 21.52mm 800mm-1100mm
Tested on the basis that the metal insert in the frame is a minimum of 1.5mm in thickness. I attach a copy of the test report which is in German but which I think we can include anyway.   FIXING TO STEEL OR CONCRETE Skyforce is fully tested at a height of 1.1m up to a width of 3m when fixed to steel or concrete.
Glass H = Glass Height L = Glass Length Working Line Load
6.62 min. 300mm - max. 1100mm max. 1100mm 3.0 kN/m
6.62 min. 500mm - max. 1100mm max. 1100mm 3.0 kN/m
8.84 min. 300mm < 500mm max. 1100mm 3.0 kN/m
8.84 min. 500mm - max. 1100mm max. 1100mm 3.0 kN/m
8.84 min. 600mm - max. 1100mm max. 1700mm 1.5 kN/m
8.84 min. 300mm < 600mm max. 1700mm 0.74 kN/m
10.10.4 min. 300mm < 500mm max. 500mm 3.0 kN/m
10.10.4 min. 500mm - max. 1100mm max. 1100mm 3.0 kN/m
10.10.4 1100mm max. 3000mm 0.74 kN/m
10.10.4 min. 300mm < 1100mm max. 3000mm 0.36 kN/m
FIXED TO TIMBER OR STONE/BRICKWORK   No test data available.   For more comprehensive test data, click here
