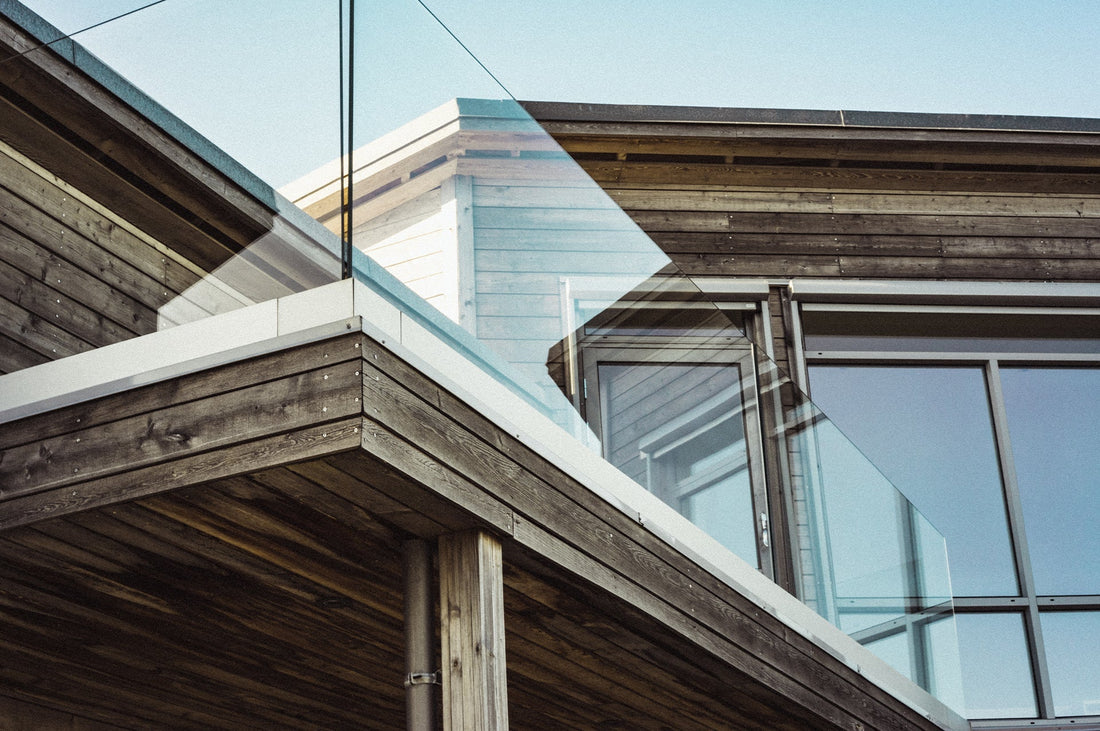

How to Measure for Glass Balustrades on Non-Standard Shapes

March 23, 2026 5 min read

Designing a glass balustrade for a straight balcony or staircase is relatively simple: measure the run, define panel sizes, and install. But once you move into the non-standard shapes of circular balconies, flowing curves, or complex angled terraces, the process becomes far more technical.

For architects and high-end DIY installers, these projects require more than basic measuring. They demand a working knowledge of geometry, fabrication constraints, and how measurements translate into a finished balustrade system.

Key takeaways

Non-standard shapes require a geometry-driven approach to measuring
Circles depend on accurate radius and chord calculations
Curves should be templated or mapped using offset measurements
Angles must be measured precisely with proper tolerance allowances
The balustrade channel directly affects final fit and must be included in all calculations
Detailed drawings are essential for a successful custom glass order
Verification at every stage prevents costly fabrication errors

A Guide to Non-Standard Glass Balustrade Measuring

Why non-standard shapes require a different approach

Non-linear designs introduce variables that don’t exist in straight runs. Glass obviously cannot be bent on-site, which means every panel must be manufactured to exact specifications before installation.

Key challenges include:

Translating curves into flat glass panels
Managing tolerances within the balustrade channel
Aligning panels across multiple planes
Maintaining visual consistency across irregular geometry

In high-end projects, there is no room for approximation. A miscalculation of even a few millimetres can compromise the entire installation.

Preparation and measurement strategy

Before taking any measurements, ensure the installation site is fully ready. You should only measure when:

All substrates and finishes are complete
Fixing points for the balustrade channel are installed or clearly defined
Drainage considerations are accounted for
Structural levels are confirmed

Essential tools include:

Laser distance measurer for accuracy over long spans
Flexible tape for following curves
Digital angle finder for precise corner readings
Spirit level to confirm vertical alignment
CAD software or scaled drawing tools

For complex geometry, measurement is not a single step, but rather a structured process combining site data, geometry, and digital verification.

Circles

Circular layouts are common in premium architecture, from spiral staircases to rounded balconies. While visually elegant, they require mathematically precise measurement.

Establishing the radius

The first step is identifying the true centre of the circle. From this point, measure to the line where the glass will sit within the balustrade channel.

If the centre point is inaccessible:

Measure multiple diameters across the circle
Divide by two to calculate the radius
Cross-check consistency to confirm accuracy

Even slight deviations will affect every panel in the system.

Segmenting the circle

Because glass panels are flat, a circular balustrade system is created using multiple straight panels arranged in sequence.

Decisions to make:

Number of panels
Desired smoothness of the curve
Budget versus visual refinement

More panels create a smoother appearance but increase fabrication and installation complexity.

Calculating chord lengths and angles

Each panel represents a chord of the circle. To define panel width:

Determine the central angle for each segment
Use trigonometry (or CAD software) to calculate chord lengths
Ensure consistency across all panels

Angles between panels must also be calculated precisely to avoid gaps or misalignment.

Accounting for channel tolerances

The balustrade channel introduces real-world constraints:

Glass thickness and interlayers
Setting blocks and packers
Expansion and installation clearance

Measurements must reflect the installed position of the glass, not just theoretical geometry.

Curves

Not all curves are perfect circles. Many architectural designs feature elliptical or freeform curves that cannot be defined by a single radius.

Using templates for accuracy

For irregular curves, templating is essential. Common methods include:

Physical templates using plywood or MDF
Digital laser scanning for high-precision projects
Extracting geometry from architectural CAD files

Templates eliminate guesswork and provide fabricators with exact shapes.

Breaking curves into segments

Even complex curves are fabricated as a series of straight panels. Each segment should:

Follow the tangent of the curve
Maintain consistent spacing
Align with fixing positions in the balustrade channel

Panel size should balance visual smoothness with practical installation.

Measuring offsets

A reliable method for capturing irregular curves is offset measurement.

Process:

Establish a straight baseline (chord)
Measure perpendicular distances from the baseline to the curve at regular intervals
Record these points to create a coordinate map

This data can then be recreated in CAD to generate precise panel geometry.

Translating into fabrication drawings

Once captured, all measurements must be converted into clear fabrication documentation.

Include:

Plan views with all segment dimensions
Panel widths and heights
Angles between adjacent panels
Exact positioning of the balustrade channel

This stage is where measurement meets manufacturing.

Angles

Angles are deceptively complex. While they may appear simple, small inaccuracies can result in visible gaps or installation issues.

Capturing precise angles

Use a digital angle finder to measure:

Internal angles (inside corners)
External angles (outside corners)

Do not rely solely on design drawings, as built conditions often vary.

Defining panel connections

At each angle, decide how panels will meet:

Butt joints for minimal visual interruption
Mitred edges for seamless transitions
Structural posts where required

Frameless systems typically favour tight, polished joints with minimal gaps.

Allowing for installation tolerance

Glass panels must fit without force.

Allow for:

2-5mm clearance between panels
Movement within the balustrade channel
Structural expansion and contraction

Failure to include tolerance is one of the most common causes of installation failure.

Maintaining consistent heights

Angles can introduce height discrepancies if levels are not perfectly aligned.

Always confirm:

A consistent top line across all panels
Uniform embedment depth within the channel

This ensures both structural integrity and visual consistency.

Connecting measurements to the custom glass ordering process

Accurate measurement is only valuable if it translates correctly into production.

Creating production-ready drawings

Your supplier will require detailed documentation, including:

Plan drawings with all dimensions
Elevations showing panel heights
Section details of the balustrade channel

Clarity at this stage prevents costly fabrication errors.

Specifying glass details

Define all technical aspects of the glass:

Thickness (typically laminated safety glass)
Edge finishing (polished or arrised)
Compliance with safety standards

These specifications must align with the structural requirements of the balustrade system.

Reviewing fabrication drawings

Manufacturers will produce shop drawings for approval.

Carefully verify:

All measurements
Panel sequencing
Angles and radii
Channel positioning

This is your final opportunity to catch errors before production begins.

Solving common logistical challenges

Complex balustrade projects often encounter practical obstacles.

Irregular substrates

Solution: Use adjustable packers within the balustrade channel to accommodate minor inconsistencies.

Inconsistent curves

Solution: Increase the number of panels to reduce visual distortion.

Tight installation tolerances

Solution: Build in additional clearance and confirm all dimensions twice.

Misalignment across levels

Solution: Establish a consistent datum line before measuring any panel heights.

Problem-solving at the measurement stage saves significant time and cost during installation.

Measuring for complex glass balustrade installations requires both accuracy and vision, but beyond that, you have to be prepared to follow the process. When measurements are structured, verified, and clearly communicated, even the most complex geometry can be transformed into a precise, elegant balustrade system.

In these projects, success is never accidental. It is measured, calculated, and built into every panel.

If you need support designing or sourcing a non-standard glass balustrade, contact Origin Architectural.
